Boyle's Law states:
At constant temperature, the volume of a gas varies inversely with absolute pressure, while the density of a gas varies directly with absolute pressure.
Boyle's Law is mathematically stated as:
PV = K WHERE: P = Absolute Pressure V = Volume K = Constant |
Boyle's Law is important to divers because it relates changes in pressure i.e., depth, to changes in the volume of a gas and defines the relationship between pressure and volume in breathing gas supplies.

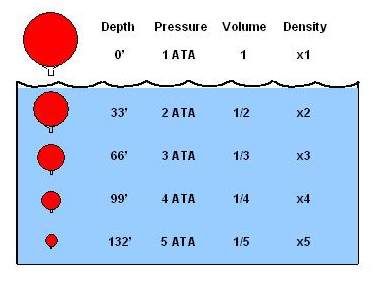

Example #1: Suppose you had a balloon containing 1 cubic foot of air at the surface of the water. This balloon is under 1 Atmosphere-Absolute (ATA) or 14.7 psi or 1 Bar (approx) of pressure. If we take the balloon underwater to a depth of 33 feet (10m), it is now under 29.4 psi (2 Bar) of pressure. Boyle's Law then tells us that since we have twice the pressure, the volume of the balloon will be decreased to one half. It follows then, that taking the balloon to 66 feet (20m), the pressure would compress the balloon to one third its original size, 99 feet (30m) would make it 1/4, etc.
|
If we bring the balloon in the previous example back up to the surface, it would increase in size due to the lessening pressure until it reached the surface and returned to its original size, 1 cubic foot. This is because the air in the balloon is compressed from the pressure when submerged, but returns to its normal size and pressure when it returns to the surface.
Here is a Calculator for ATA and volume fractions.
Along with the volume of air in the balloon, the surrounding pressure will affect the density of the air as well. Density, simply stated, is how close the air molecules are packed together. The air in the balloon or container at the surface is at its standard density, but when we descend to the 33 feet (10m) where its volume is reduced to one half, the density has doubled. At 66 feet (20m), the density has tripled. This is because the pressure has pushed the air molecules closer together. The reverse also happens, suppose we inflate a balloon at 99 feet (30m) We know the air at this depth is 4 times denser than at the surface. As the balloon ascends, the external pressure lessens and the balloon will expand, eventually bursting.
Example #2: This is a much tougher problem, but has practical applications.
You want to make another dive, but your buddy does not have a full tank
Tank equalization takes time in order for Boyles law to apply.
This is of particularly useful in filling your own pony bottles from So we will work in Cubic feet and psi.
We will assume that the 100 CF tank is a low pressure steel tank
So:
Arranging Boyles equation for this example we get: P2 = (2500 - 500 + 14.7) * 100 / 150 + 500 - 14.7 = 1828 psi
Now we have 1828 psi in both tanks, since the pressures in
|
In these examples of Boyle's Law, the temperature of the gas was considered
a constant value. However, temperature significantly affects the pressure
and volume of a gas; it is therefore essential to have a method of including
this effect in calculations of pressure and volume. To a diver, knowing the
effect of temperature is essential, because the temperature of deep water is
often significantly different from the temperature of the air at the
surface. The gas law that describes the physical effects of temperature on
pressure and volume is "Charles' Law"
